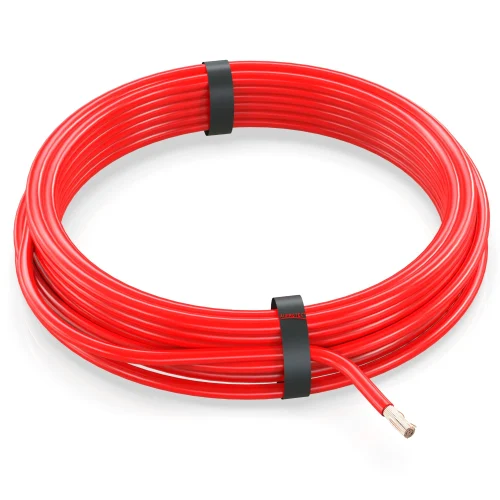

Auto Cable

An auto cable transmits mechanical force or electrical signals in vehicles, ensuring control, power, or communication.

Auto Cable

Key Features

  • Excellent flexibility
  • The SKEB Auto cables is impervious to water, petrol, diesel, acids, engine and lubricating oils and grease resistant
  • High mechanical strength
  • Excellent flame retardant properties
  • Excellent mechanical & electrical properties
Contact Us

Products Specification

Coils 100, 200, 500 and 1000m

Conductor : Flexible Bare Copper Wire
Insulation : Pvc Insulation
Cables Type : FLRY-A and FLRY-B
Temperature : 20°c to 105°c

These cables are used as original equipments for wiring automobiles and in the auto harnesses

Auto Cable Table
Conductor Size (sqmm) NO. Of Wires Wire Size (mm) Bunch Copper Diameter (mm) Conductor Resistance at 20°C (max) Minimum Insulation Thickness (mm) Outer Diameter (mm) Outer Diameter Max. (mm)
0.35 12 0.20 0.90 52.00 0.20 1.20 1.40
0.50 16 0.20 1.00 39.00 0.22 1.40 1.60
0.75 24 0.20 1.20 26.00 0.24 1.80 1.90
1.00 32 0.20 1.35 19.50 0.24 1.90 2.10
1.50 30 0.25 1.70 13.30 0.24 2.30 2.40
2.50 50 0.25 2.20 7.98 0.28 2.90 3.00
4.00 56 0.30 2.75 4.95 0.32 3.40 3.70
6.00 84 0.30 3.50 3.50 0.32 4.00 4.30
