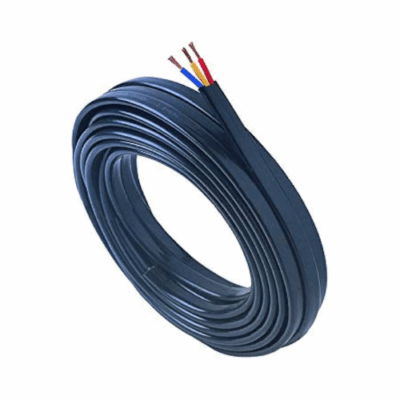

Flat Cables for Submersible pumps

Flat cables for submersible pumps are flexible, ensuring reliable power transmission.

Flat Cables for Submersible pumps

Key Features

  • Outstanding flexibility
  • Exceptional resistance to moisture and abrasion
  • Long operational lifespan
  • Superior mechanical and electrical properties
Contact Us

Products Specification

  • Certifications : Compliant with latest IS 694 standards
  • Temperature Range : -15 ℃ to +70 ℃
  • Nominal Voltage : 1.1 KV
  • Test Voltage : 3.0 KV
  • Conductor : Flexible Bare Bunch Copper per IS 8130
  • Insulation : PVC as per IS 5831
  • Outer Sheath : PVC as per IS 5831
  • Core Colors : Red, Yellow, Blue (as per IS 694:2010 – 3C)
  • Standard Packaging : Coils of 500 m or customized per customer requirements
  • Ideal for use in irrigation pumps, drinking water supply pumps, and powering submersible pump motors. Submersible flat cables are suitable for providing power to various types of portable and fixed pumping equipment, both indoors and outdoors.
Compact PVC Wire Table
SINGLE CORE PVC INSULATED COPPER WIRES – IS 694:2010
CONDUCTOR PVC INSULATION PVC SHEATH Amps Ohm/km
Sq.mm No./mm Thick mm Dia mm Thick mm H mm W mm
1.0014/0.30*0.62.714.810.41118.1
1.5022/0.30*0.63.215.211.71412.1
2.5036/0.30*0.73.61.16.113.8187.41
4.0056/0.30**0.84.21.27.115.8264.95
6.0084/0.30**0.85.31.38.218.9313.30
10.00140/0.30**1.06.71.410.323.6421.91
16.00226/0.30**1.08.01.612.427.5571.21
