House Wires & Building Wires

High-quality house and building wires designed for durability, safety, and optimal performance in residential and commercial electrical systems.

House Wires &Building Wiresy

Key Features
  • High flame retardant properties (FR and FRLS)
  • REACH, ROHS, CE, and CPR Compliant
  • Excellent resistance to moisture, abrasion, grease, and oil
  • Anti-rodent and Anti-termite properties
  • Long operational lifespan
  • Excellent mechanical and electrical properties
  • Steam and boiling water resistant
  • Non-corrosive and Non-toxic Insulation
Contact Us

Products Specification

  • Voltage Grade : Up to and including 1100V
  • Approvals : IS 694 marked, FIA/TAC
  • Operating Temperature : 10°C to max. +90°C
  • Nominal Voltage : 1.1 KV
  • Test Voltage : 3.0 KV
  • Flame Propagation : Flame retardant test as per IS 10810-58,64, IEC 60332-1
  • Conductor : Annealed flexible EC Copper class-2 or class-5 as per IS 8130
  • Insulation : FR or FR-LSH PVC insulation as per IS 5831
  • Standard Length : Coils of 45m, 90m, 180m
  • Core Colors : Red, Yellow, Blue, Black, Brown, Grey, Orange, White, Green, Yellow/Green, or as per customer requirement
  • Standard Packaging : This cable is marked with “”SKEB”” from 1 Sq. mm to 6 Sq. mm and is available in protective cartons for 90m coils, with project packing options up to 180m.

Electrolytic copper strands are drawn multiple times to ensure consistent resistance, dimensions, and flexibility. The insulation is made from a specially formulated flame-retardant PVC, designed to slow the spread of flames and enhance safety. This wiring is ideal for both residential and commercial applications, including installations in conduits and fixed systems. It is particularly well-suited for environments at risk of fire or explosions, such as chemical plants, public buildings, hospitals, schools, commercial complexes, and theaters, where electrical and fire safety are of paramount importance.

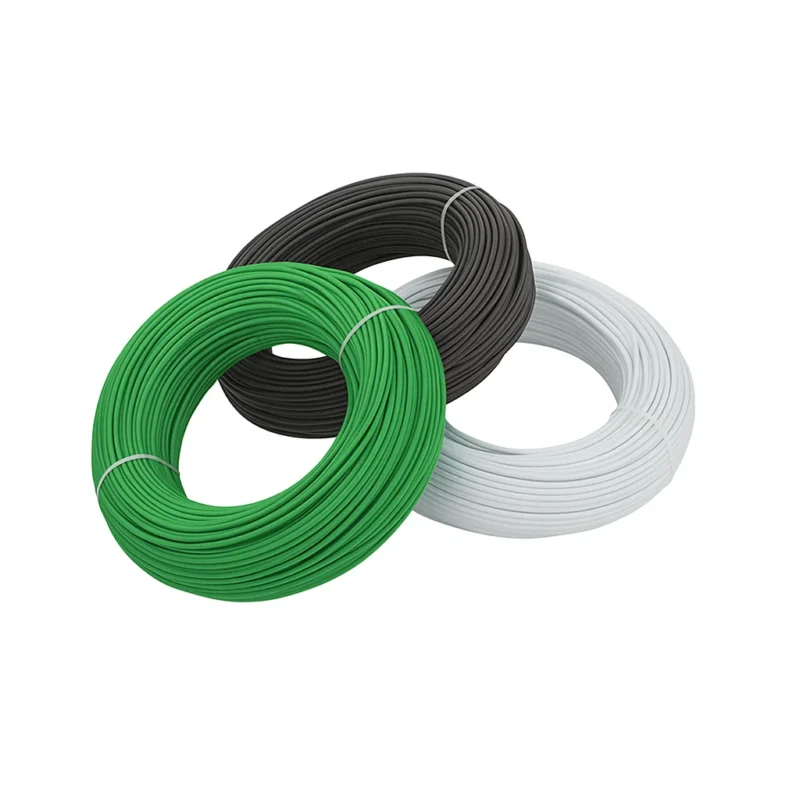

Single Core PVC Insulated Copper Wires

SINGLE CORE PVC INSULATED UNSHEATHED ELECTROLYTIC COPPER WIRES
UP TO 1100V AS PER IS 694 : 2010

Nominal c/s Area of Conductor in Sq.mm. Conductor Construction No./mm Nominal Insulation Thickness in mm. Approx. Core Dia. in mm Current Rating At 40°C in Amps. Max. D/C Resistance @ 20°C Ohm/km.
0.50 16/0.20** 0.6 2.2 4 39.0
0.75 24/0.20** 0.6 2.5 7 26.0
1.00 14/0.30* 0.7 2.7 11 18.1
1.50 22/0.30* 0.7 3.0 14 12.1
2.50 36/0.30* 0.8 3.5 18 7.41
4.00 56/0.30** 0.8 4.2 26 4.95
