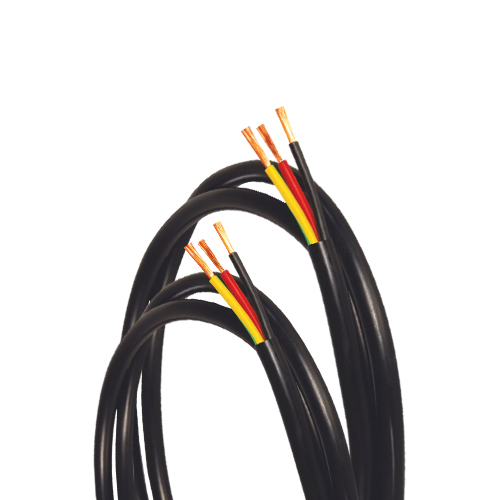

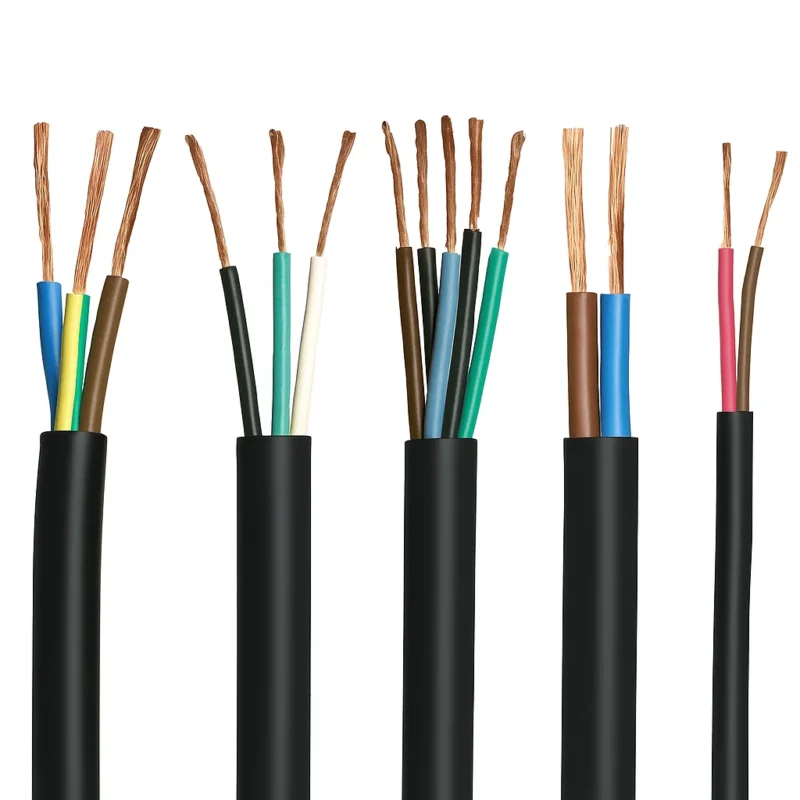

Multi Core Flexible cables for Industries

Durable and versatile multi core flexible cables designed for industrial use, ensuring reliable performance, flexibility, and safety.

Multi Core Flexible cables for Industries

Key Features

High Flexibility – Ideal for dynamic applications with frequent movement or bending
Heat and Flame Resistant – Ensures safety in high-temperature conditions
Oil, Chemical & Abrasion Resistant – Suitable for use in demanding industrial settings
Excellent Electrical Conductivity – Ensures efficient power transmission
Compact and Lightweight Design – Easy to install and manage
Multi-stranded Copper Conductors – Enhances flexibility and conductivity
Superior Insulation and Sheathing – Offers added protection and extended service life

Conductor: Electrolytic grade, multi-stranded, annealed bare copper (Class 5 as per IS:8130)
Insulation: PVC Type A or FR/FRLS/HR as per IS:5831
Core Identification: Colour coded or number printed (as per customer requirement)
Sheath Type: PVC Type ST1/ST2 or FR/FRLS outer sheath as per IS:5831
Voltage Grade: 300/500V or 450/750V
Temperature Range: -15°C to +70°C (standard) / up to 105°C (on request)
Bending Radius: Minimum 6 times the overall diameter
Test Voltage: 2000V AC for 1 minute
Standard Length: 100 meters (custom lengths available)
Compliance: IS:694, RoHS compliant, ISO certified manufacturing

Multi Core Flexible Cables are widely used across various industrial applications due to their durability, flexibility, and reliable performance. They are ideal for supplying power to machinery, industrial equipment, and portable tools, as well as for control wiring in automation systems and electrical panels. These cables are commonly used in conveyor systems, HVAC units, and industrial lighting installations, ensuring efficient power distribution and signal transmission. Their robust construction and resistance to mechanical stress, chemicals, and heat make them suitable for demanding environments in manufacturing, commercial buildings, and process industries.

PVC Insulated Copper Cable Table

PVC INSULATED & SHEATHED ANNEALED COPPER CONDUCTOR MULTI CORE CABLES
Size in sq. mm.	Size in mm.	Current Rating	Approximate overall diameter of cable in mm
			2 core	3 core	4 core
0.50	16 / 0.20	4	6.20	6.60	7.20
0.75	24 / 0.20	7	6.80	7.20	7.90
1.00	32 / 0.20	11	7.00	7.50	8.10
1.50	48 / 0.20	14	7.60	8.10	9.00
2.50	80 / 0.20	19	9.00	9.60	10.50
4.00	56 / 0.30	26	10.60	11.30	12.40
6.00	84 / 0.30	33	12.60	13.40	15.20
10.00	140 / 0.30	45	16.00	17.00	18.80
16.00	226 / 0.30	60	18.80	20.10	22.20
25.00	354 / 0.30	75	24.00	25.60	28.20
35.00	276 / 0.40	102	–	27.5	30.5
50.00	396 / 0.40	138	–	31.7	35.6
