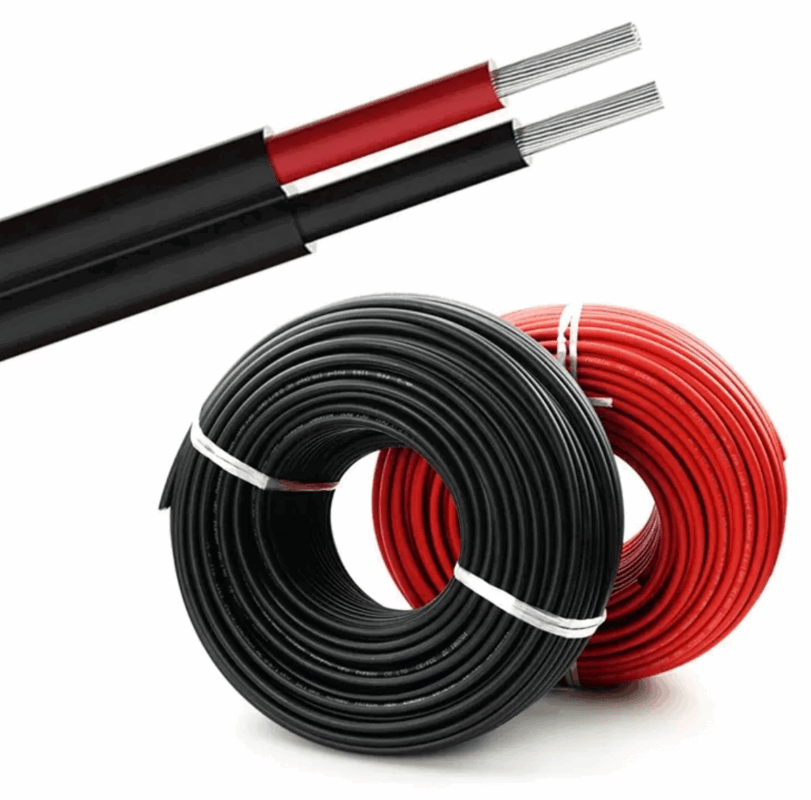

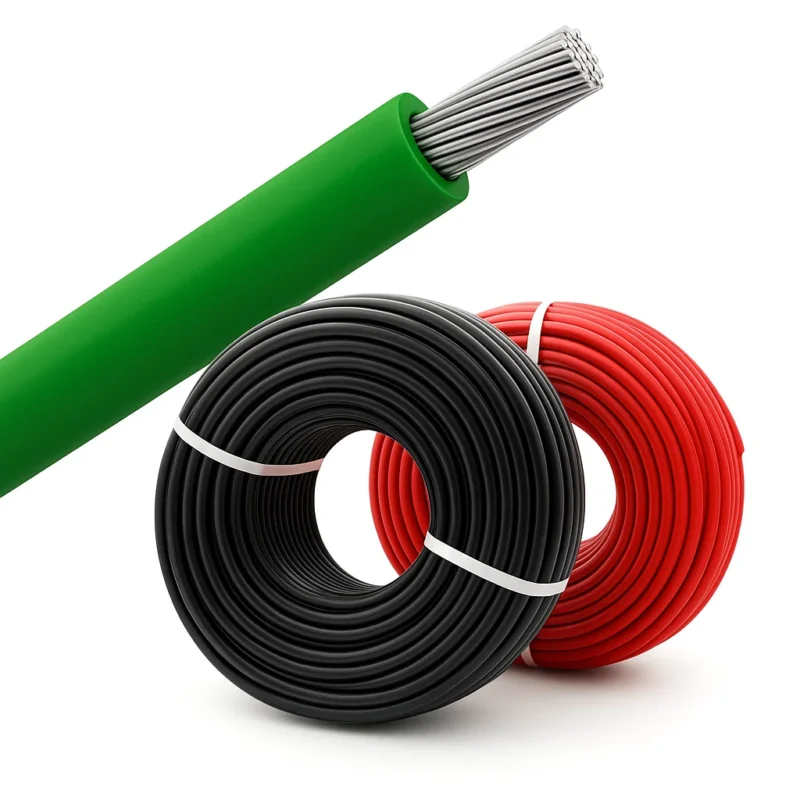

Solar Cables

Solar cables connect photovoltaic panels to systems, efficiently transmitting DC electricity with durability and UV resistance.

Solar Cables

Key Features

  • Mineral Oil Resistance
  • Acid and Alkaline Resistance
  • Ammonia Resistance
  • Weather Resistance
Contact Us

Products Specification

  • PV – System Voltage : DC 1.8 kV
  • Standard : Generally Conforming to EN 50618
  • Conductor :Fine Wire Tinned Copper Conductor according to IEC 60228 cl. 5.
  • Voltage Rating : AC 0.6 / 1.0 kV
  • Insulation : XLPO (cross linkable, halogen free, flame retardant) compound for core insulation.
  • Cable Colour : Red, Black, Black with Red Strip
  • Sheath : XLPO (cross linkable, halogen free, flame retardant) compound for Sheath over insulation.

Designed for use in photovoltaic power supply systems and similar applications, suitable for free-hanging, movable, fixed installation, and buried in ground in constructionally covered systems. These cables are suitable for indoor and outdoor use, including hazardous explosion areas, and are widely applicable in industry and agriculture, providing robust performance and reliability in solar panel, solar power plant, and solar pump installations.

Solar Cable Design Parameters
Cable Design Parameters
Nominal Cross-Sectional (sq.mm) Approx. Cable Diameter (mm) Single cable free in air (A) Single cable on a surface (A) Two loaded touching, on a surface (A) Max. Conductor Resistance at 20°C (Ω/km)
1.5 4.7 30 29 24 13.7
2.5 5.1 41 39 33 8.21
4 5.6 55 52 44 5.09
6 6.1 70 67 57 3.39
10 7.1 98 93 79 1.95
16 8.3 132 125 107 1.24
25 10.1 176 167 142 0.795
35 11.5 218 207 176 0.565
50 13.3 276 262 222 0.393
70 15.2 347 330 278 0.277
95 16.9 416 396 333 0.210
120 18.7 498 474 390 0.162
150 19.8 566 538 453 0.134
185 23.2 660 620 515 0.106
240 26.1 785 736 620 0.0817
