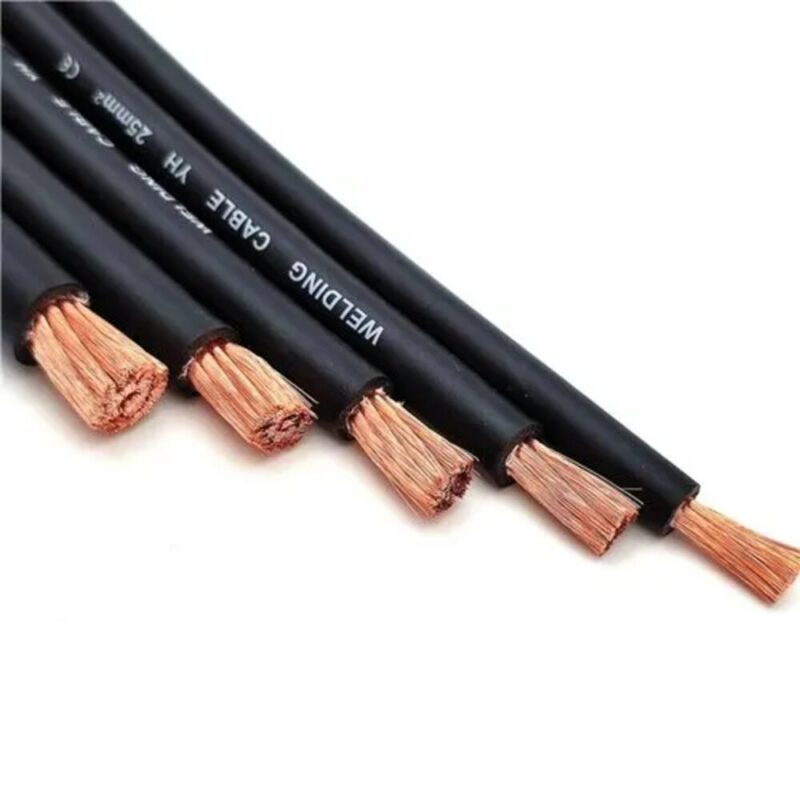

Welding Cables

Welding cable comes in a sizable selection of thickness, length of cable, durabilities and a host of other features. Unless you know what you need, you will surely become lost in the sea of cables.

Welding Cables

Key Features

  • High-performance, flexible, and durable design.
  • Flame-retardant and weather-resistant.
  • Resistant to cuts, oil, chemicals, and abrasion.
  • Excellent flexibility for long-term use.
Contact Us

Products Specification

  • Temperature Range : 20°C to +90°C
  • Voltage Rating: 600V
  • Spark Test : 3.0 KV
  • Bending Radius: 6x cable diameter
  • Conductor : High-conductivity copper (Class 5/6).
  • Insulation : NBR rubber (single/double layer)
  • Sheath Colors : Durable NBR, available in orange or black
  • Connection to welding electrodes in industrial setups.
  • Ideal for assembly lines, machine tools, and automated welding machines.
  • Suitable for rugged conditions requiring flexibility and durability.
Welding Cables Table

SINGLE CORE PVC INSULATED & SHEATHED COPPER WELDING CABLES

Cable Size
Sq.mm		 Nominal Inner
Insulation Thickness
mm		 Nominal sheath
Thickness
mm		 Overall Cable Diameter
Single Insulation
mm		 Overall Cable Diameter
Double Insulation
mm		 Max. Conductor Resistance
at 20°C
s/km		 Current Rating – Welding Applications Non Welding Applications
amp
100%
amp		 85%
amp		 60%
amp		 30%
amp		 20%
amp
16.0 1.10 1.30 9.0 10.0 1.210 135 145 245 302 — 138
25.0 1.20 1.40 10.30 12.0 0.780 180 195 330 402 — 187
35.0 1.20 1.60 11.85 13.50 0.554 225 245 410 503 — 233
50.0 1.30 1.70 14.0 15.20 0.386 285 310 520 637 — 295
